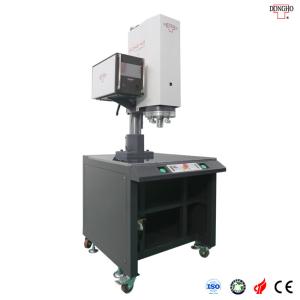

The iBA-HF series ultrasonic plastic welding machine is integrated a digital ultrasonic generator and smart controller, which makes the ultrasonic welding machine easy to use and high efficiency. The ultrasonic welder is equipped with multiple welding modes and future-oriented iQS operating system. The ultrasonic welder can comply with the customer's conventional welding requirements.
Technical Parameters:
| Model | iBA-HF1545 |
| Frequency accuracy | 14.80KHz-15.200KHz |
| Power | 4500W |
| Triggering Method | Time |
| Welding Method | Time/Energy |
| Max working Stroke(mm) | 100mm±1mm |
| Max Welding Time | 5s |
| Booster Amplification ratio | 1:4.0 |
| Voltage(V) | AC220V±5% 50/60Hz |
| Air pressure | ≥0.05Mpa ≤0.65Mpa |
| Amplitude control | Single-stage amplitude |
| Air pressure control | pressure regulating valve |
| Frequency adjustment | IGBT Automatic frequency chasing |
| Weld area | Per material/shapes, not more than 300mm |
Features:
1. The 6th generation iQS operation system;
2. Built-in scanning gun for data tracing;
3. Modular structures with multiple welding modes;
4. Metal die-casted stand column in the square structure;
5. auto-tuning ultrasonic frequency tracking;
6. Overload protection system;
7. Fault alarm during operation if error;
Application:
Ultrasonic plastic welding is widely used in aviation, ships, automobiles, electrical appliances, packaging, toys, electronics, textiles, and other industries; Can be used for the following plastic welding: ABA plastic super, ABS plastic, AES plastic, AMMA plastic, ARP plastic, AS plastic, ASA plastic, CA plastic super, CAB plastic, CAP plastic, CE plastic, CF plastic, CMC plastic, CN plastic and other plastic welding, the practical scope is increasingly expanding, Greatly improve the production efficiency of today's plastic welding industry.
