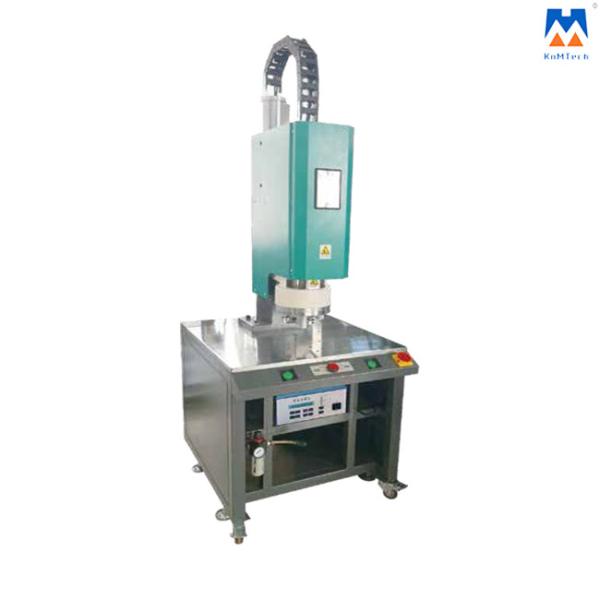

4200W High-power Ultrasonic Welding Machine for Plastic Welding
The ultrasonic plastic welding machine has a new digital energy ultrasonic generator system. Touch-screen parameter adjustment, all parameters are adjusted on the machine screen and managed by password protection. The quality control function can record 500,000 sets of welding data, including welding time, welding energy, real-time frequency, and the data can be exported. Data monitoring function. If the welding data is out of the setting range each time, the machine will sound an alarm, the touch screen data will display NG, and the normal operation will display OK.
The ultrasonic plastic welder can be connected with other auxiliary tools, such as PLC application automation system devices, and an alarm system can be added at the same time. There will be an alarm prompt when a bad or suspected part exceeds the set upper and lower limits. The imported ceramic chip of the transducer has strong energy, and the steel amplitude modulator is durable. The high-strength round column and the large-frame workbench welded by square steel remain stable and firm under high pressure and rapid operation without backup.
The welding machine adopts a single-head adjustable air cylinder to ensure smooth movement of the machine head up and down.
Technical Parameters:
| Product name | 4200W Ultrasonic Welding Machine |
| Equipment Frequency | 15KHZ |
| Equipment Power | 4200W |
| Welding Area | Φ200 |
| Equipment Voltage | 220V |
| Welding Time | 0.01-9.99s |
| Air Pressure Range | 0.1-0.8Mpa |
| Operation Mode | Automatic / Manual |
| Equipment Weight | 220KG |
| Overall Size | 750*880*2000mm |
Application:
Automotive industry: plastic car body components, car door, automotive instruments, car lights; mirror, sun shield, decoration pieces, reflecting materials, bumpers, cables, plastic filters for motorcycles, radiator, brake fluid header, oil cup, water tank, air hose, exhaust purifier, trays, etc.
Electronics plastic parts: Communication equipment, Cordless phone, Phone accessories, Phone shell, Battery case, Charger, Repair valve adjustable Lead Acid battery, USB flash disk, SD Card, CF Card, USB Connector, Bluetooth Device, etc.
Stationery industry: Folders, albums, folding box, PP hollow plate, pen ring, ink cartridge, ink cartridge, etc.
