1:1.75 Booster Gain Ultrasonic Welding Booster For 35kHz Ultrasonic Welding Transducer

The 35kHz Ultrasonic Welding Booster

The ultrasonic converter is a key part of the ultrasonic welding system, which will convert electrical energy into mechanical energy so that two plastic parts can vibrate in high frequency and melt on the surface, which will be welded after applying some press force on both parts. The ultrasonic booster is used to amplify the amplitude of welding.

What is a booster?

A booster is a one-half-wave length long resonant section made of aluminum or titanium. It modifies the amplitude of vibration applied to the horn.

How does it work?

To provide an amplitude change, the booster will have different diameters on either side of its center or nodal point. A smaller diameter at the end attached to the horns means that the boosters are for amplitude increasing. A bigger diameter at the end attached to the horn means the booster is for amplitude decreasing. Clamped at their nodal point, the booster provides rigid support for the converter/horn assembly.

Technical parameters:

Features:

1. High output power
2. High quality
3.15KHz-40KHz supplied, customized available

4. 300W/600W/900W /1500W/2000W/2600W/3200W/4200W supplied

Booster gain:
1.0:1
1.5:1
1.75:1
2.0:1
2.5:1

3:1

Detailed Photos:

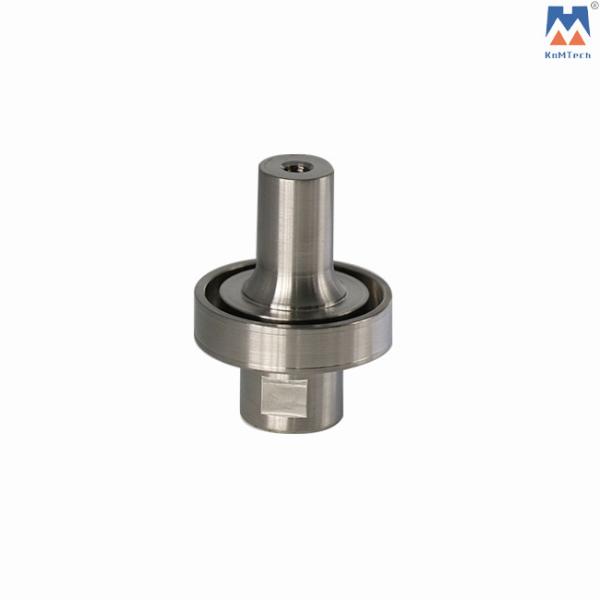

35kHz Ultrasonic Welding Booster
