28KHz Ultrasonic Spot Welding Machine 300W For Clothing Sealing

Product Categories
K&M TechnologiesCo., Ltd
Contact Now

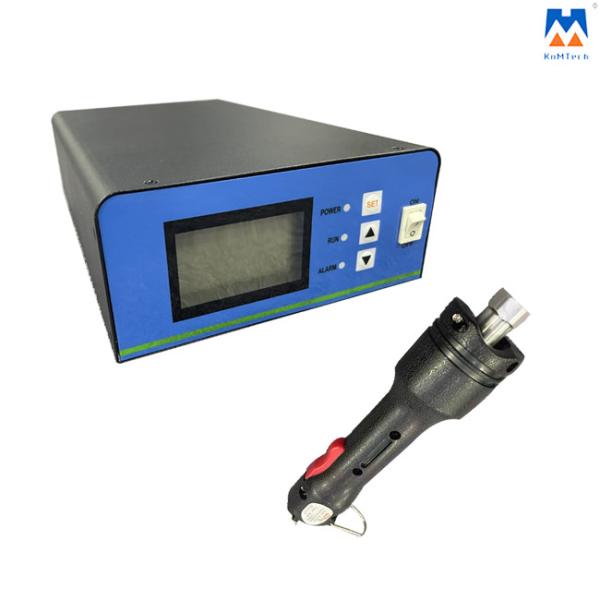

28KHz Ultrasonic Spot Welding Machine 300W For Clothing Sealing

  • 1
  • 2
  • 3

Brand Name : KnMTech

Model Number : KM-SS-HW2803

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500sets per month

Delivery Time : 3-15 work days

Packaging Details : paper/wood carton

Product Name : Handheld Ultrasonic Welding Equipment

Frequency : 28khz

Power Range : <=300W

cooling way : air cooling

Key word : Ultrasonic handheld sealing device

After-sales service provided : Video technical support,Online support

Contact Now

28KHz Ultrasonic Spot Welding Machine 300W For Clothing Sealing

300W Handheld Ultrasonic Spot Welding Machine For Clothing Welding

This digital ultrasonic spot welding machine has a digital power supply that is easy to use with many functions for you to use. The ultrasonic generator has a real-time frequency tracking function, and the welding time is adjustable, cooling time is adjustable, can be used in different areas such as the clothing industry, packaging industry, food industry, and so on.

Technical parameters:

Product Name Ultrasonic Spot Welder
Model 28KHz 300W 35KHz 300W
Working mode External control/Spot welding
Frequency Accuracy 0.1HZ
Application Clothing, packaging, food, non-woven fabric, production equipment

Welding Gun

Weight

 300g
Generator Weight 1500g

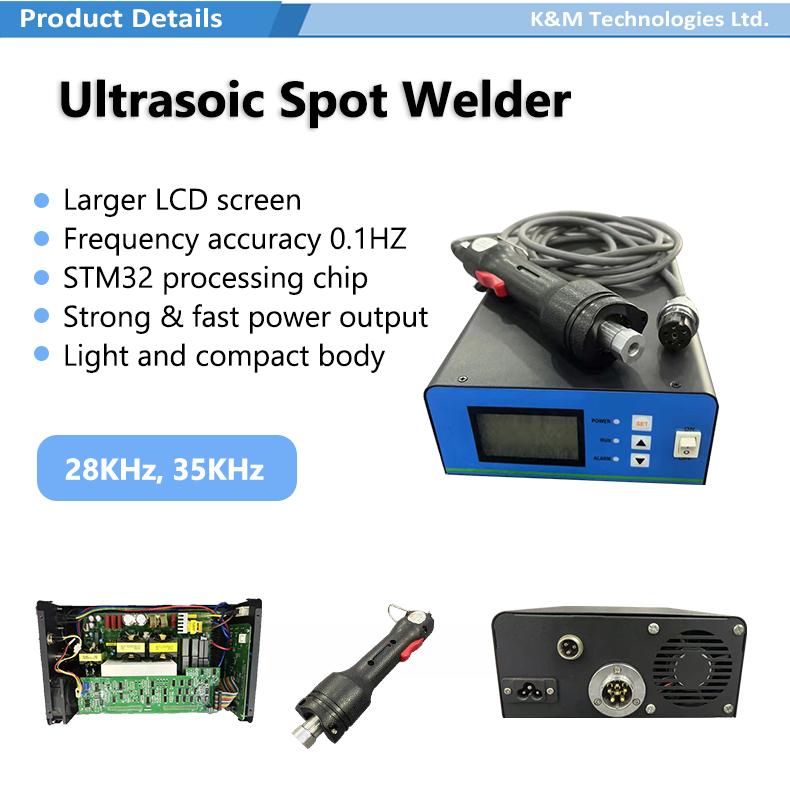

Features:

1. Larger LCD screen displaying intuitive parameters
2. Frequency auto-tuning, accuracy 0.1HZ
3. Automatic tracking and matching the welding horns frequency of various types
4. The machine core adopts STM32 high-performance processing chip to realize high-speed communication and real-time parameter calculation to maintain stable operation
5. Self-innovated patented three-stage automatic frequency tracking function
6. External control (PLC) & spot-welding working modes
7. Strong & fast power output
8. The bandwidth phenomenon caused by the transducer/horn can also be tracked accurately in real-time
9. Can continue to work in the best state when transducer/horn appears with resonance frequency deviation
10. Light and compact body weighs about 1.5kg to save space

Application:

Field Specific Application
Apparel Clothing fabric, underwear spot welding, etc.
Label Logo, woven labels, marks welding or spot welding, etc.
Shoe material TPU vamp positioning spot welding, smoothen shoe head wrinkles, etc.
Poultry Chicken manure belt, egg conveyor belt welding, etc.
Automobile Automotive trim wrapping, trim riveting, steering wheel dustproof sleeve welding, etc.
Electronic Plastic parts, rubber column riveting, soundbox covering cloth welding, etc.
Packaging PVC spot welding, plastic box sealing welding, etc.
Non-woven Face mask, non-woven bag welding, etc.
Ribbon Ribbon, elastic belt welding
Filter net or bag Velcro welding, film welding, etc.

28KHz Ultrasonic Spot Welding Machine 300W For Clothing Sealing28KHz Ultrasonic Spot Welding Machine 300W For Clothing Sealing
